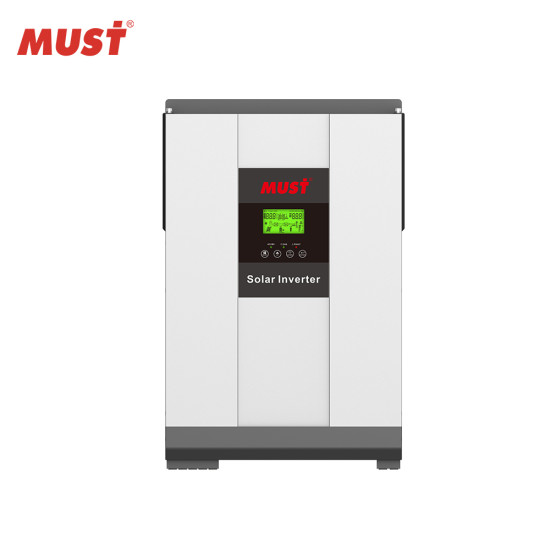

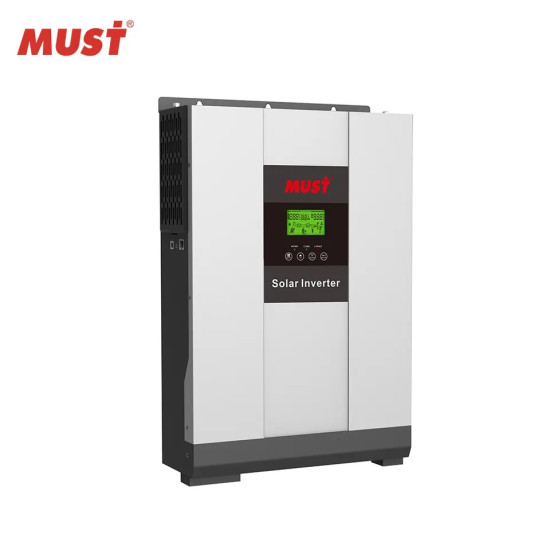

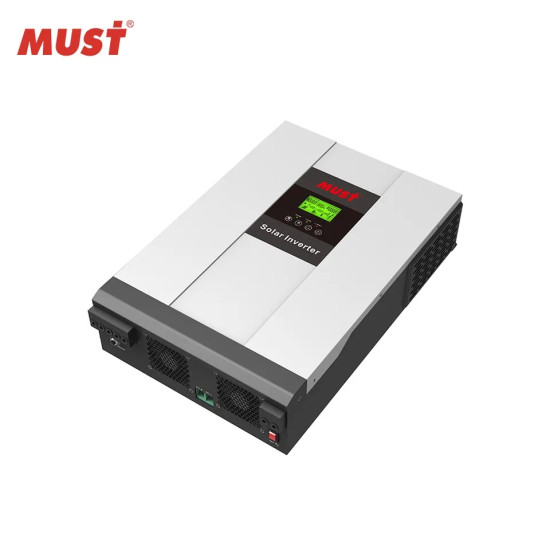

Solar Inverter - MUST 3kW 48V

MODEL

PV18-3048 VHM

48VDC

INVERTER OUTPUT

Rated Power

3000W

Surge Power

6000W

Waveform

Pure sine wave

AC Voltage Regulation (Batt.Mode)

(220VAC ~ 240VAC)±5%

Inverter Efficiency (Peak)

93%

Transfer Time

10ms(For Personal Computers)

20ms(For Home Appliance)

AC INPUT

Voltage

230VAC

Selectable Voltage Range

170~280VAC(For Personal Computers); 90~280VAC(For Home Appliances); 184~253VAC(VDE4105)

Frequency Range

50Hz/60Hz (Auto sensing)

BATTERY

Normal voltage

48VDC

Floating Charge Voltage

54VDC

Overcharge Protection

60VDC

SOLAR CHARGER&AC CHARGER

Maximum PV Array Open Circuit Voltage

145VDC

PV Array MPPT Voltage

64~130VDC

Standby Power Consumption

2W

PV Input Power

3840W

Maximum Solar Charge Current

60/80A

Maximum Effciency

98%

Maximum AC Charge Current

60A

Maximum Charge Current

140A

MECHANICAL SPECIFICATION

Machine Dimensions (W*H*D)(mm)

297.5*468*125

Package Dimensions (W*H*D)(mm)

638*395*241

Net Weight(kg)

13.3

Gross Weight(kg)

16.4

OTHER

Humidity

5% to 95% Relative Humidity

(Non-condensing)

Operating Temperature

0°C -55°C

Storage Temperature

-15°C -60°C
